| Place of Origin: | China |
|---|---|
| Brand Name: | Haibao |
| Model Number: | RV-471 |
| Minimum Order Quantity: | 2 |
| Price: | EXW price: $14,254(<10 units); EXW price:$13,619(≥10 units) |
| Packaging Details: | 2 units/40HC |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Units/month |
| Length: | 5150mm | Width: | 2285mm |
|---|---|---|---|
| Height: | 2550mm | Body Length: | 3900mm |
| Internal Height: | 1950mm | Maximum Speed: | 100km/h |
| Mover(Electric): | AL-KO Damping Damper /set | 100W/200W/400W Solar Panels: | 3*2.5m Awning |
| 400AH Lithium Battery: | Thetford Cassette Toilet | Xiaomi Fresh Air Machine: | Xiaomi TV |
| High Light: | Camper Van RV Motorhome Electric,Travel Camper Vans 3000W,Family Camper Van 3000W |
||

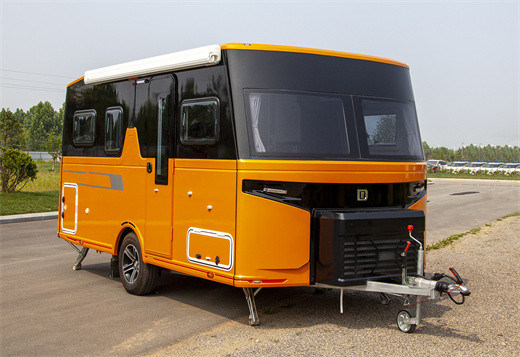

Camper Van RV Motorhome Travel Trailer
| RV-471 Configuration table | ||
| Basic parameter | Length(mm) | 5950 |
| Width(mm) | 2285 | |
| Height (mm) | 2580 | |
| Body length(mm) | 4700 | |
| Internal height (mm) | 1950 | |
| Maximum speed km/h | 100 | |
| Chassis configuration | Axle | Spare tyre |
| Connector | Vehicle frame | |
| Brake | Traction signal line plug | |
| Tyres | Stabilizing wheel | |
| Aluminum alloy wheel hub | Supporting legs | |
| Body and exterior | Square cabin | Bidirectional ventilation skylight |
| Entrance door | Signal lamps | |
| Windows | ||
| Interior decoration | Lightweight panel furniture | Integrated toilet |
| Plastic floor | Cupboards | |
| Independent wardrobe | Ring sofa | |
| Refrigerator cabinet | Queen-size bed | |
| Waterway system | Fresh water tank 120L | Portable toilet |
| Grey water tank 40L | Sprinkler | |
| Water pump | Vegetable basin and tap | |
| Gravity water inlet | External shower | |
| Quick-connected water pipe | Fuel heating air hot water system | |
| Electrical system | Integrated control system | Refrigerator |
| 200W solar panels | 3000W charge-inverter machine | |
| Commercial power interface | Air-conditioning | |
| Driving charging harness | Smoke detector | |
| LED lighting | Induction cooker | |
| Optional | Mover(Electric) | AL-KO damping damper /set |
| 100W/200W/400W solar panels | 3*2.5m Awning | |
| 400AH lithium battery | Thetford cassette toilet | |
| Xiaomi fresh air machine | Xiaomi TV | |
| AL-KO high speed stabilizer | AL-KO passive security system(ATC) | |
| Washing machine | ||
