Product Details
Place of Origin: CHINA
Brand Name: HAIBAO
Model Number: K01
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Price negotiable
Packaging Details: 27 units/40 HQ SKD
Delivery Time: 21-30 work days
Payment Terms: T/T
Supply Ability: 1000 units/month

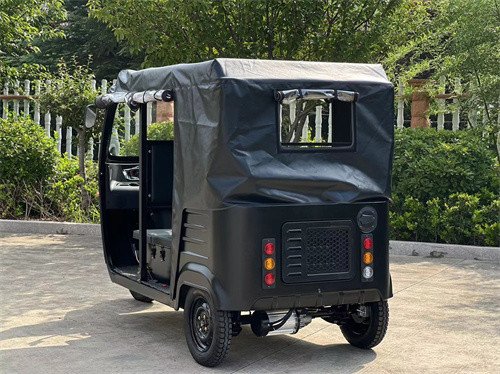

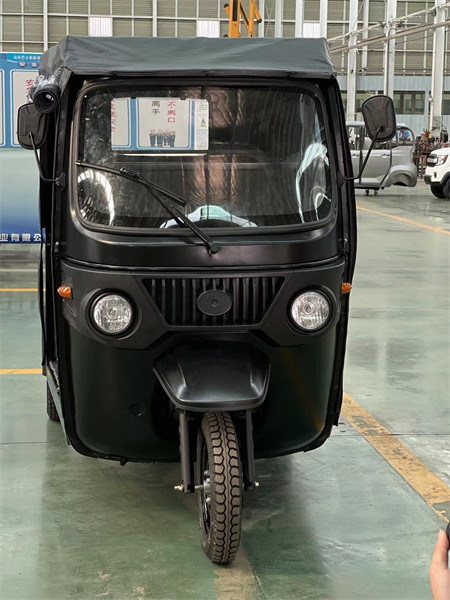

Electric Passenger Tricycle Mini Convenient Caravan 1500W-3000W Motor
| Model And Price | K01 | ||
| 1500WD | 3000W | ||
| EXW price(LHD) | $1,281 | $1,482 | |
| Solar panel | +$260 | ||
| PbAc(60V80AH ) | +$230(Range80-100km) | ||
| Land transportation and customs charges | +$37/pc | ||
| No. of vehicles per 40 foot super high container(assembled) | 27 | ||
| ● denotes YES； ○ denotes Options；— denotes NO | |||
Basic Specification |
Product name | K01 | |
| Vehicle size | 2900*1300*1810mm | ||
| Package size | |||
| Number of doors | — | ||
| Rated crew | 2+3+3 | ||
| Curb weight | 300kg | ||
| Max. speed | 35-50km/h | ||
| Battery | PbAc(60V58AH ) | ||
| Max. range | 60-80km | ||
| Wheel distance | 730mm | ||
| Wheelbase | 2230mm | ||
| Charging time | 6-8h | ||
Suspension system |
Front axle assembly | — | |
| Rear axle assembly | Integrated rear axle | ||
Damping system |
Front shock absorption system | Aluminum cylinder hydraulic shock absorber | |
| Rear shock absorption system | Independent suspension damping | ||
Other configurations |
Steering system | Handlebar | |
| Controller | 60-72V 18-24 tube controller | ||
| Door glass | — | ||
| Front & Rear brake system | Disc brake | ||
| Parking method | Independent handbrake | ||
| Wheel hub | Steel wheel hub | ||
| Tire | 4.00-12 tire | ||
| Headlight | Bulb | ||
| Meter | Ordinary instrument | ||
| Rearview mirror | Manual folding | ||
| Seat | Luxury seat | ||
| Interior | Injection molded interior | ||
| instrument panel | Fashion | ||
| Radio | ● | ||
| Reverse image | ● | ||
| Electric heater | — | ||
| Wiper | ● | ||
| Front bumper | — | ||
| Interior mirror | ● | ||
| USB | ● | ||
The Four Wheeler Electric Car samples should be packaged in a wooded box. It is strongly recommended to purchase some spare parts with the vehicle for after-sales service.
★.Q: What's the delivery time?
A: It usually takes about 25-35 days to finish an order after receiving the deposit. But the exact delivery time might be different for different orders or at different time.
★.Q: Can I mix different models in one container?
A: Yes, Different models can be mixed in one 40HQ.
★.Q: Do you have the products in stock?
A: Generally speaking we don't have. All motorcycles will be produced according to your order including samples.
★.Q: Can I use my own design for the models?
A: Sure. We can make motorcycles with your brand, design and colors.
