Product Details
Place of Origin: China
Brand Name: Haibao
Model Number: Mini
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Further discussion on specific parameters
Packaging Details: N/M
Delivery Time: 15-30 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Name: |
Mini |
Outline Size: |
2960*1080*1450mm |
Carriage Size: |
1500*1000*1000mm |
Color: |
White |
Rated Cargo Weight (kg): |
200kg |
Controller: |
48-60V 24G |
Battery: |
Lead-Acid Battery |
Charging Time: |
6-8 Hours |
Name: |
Mini |
Outline Size: |
2960*1080*1450mm |
Carriage Size: |
1500*1000*1000mm |
Color: |
White |
Rated Cargo Weight (kg): |
200kg |
Controller: |
48-60V 24G |
Battery: |
Lead-Acid Battery |
Charging Time: |
6-8 Hours |

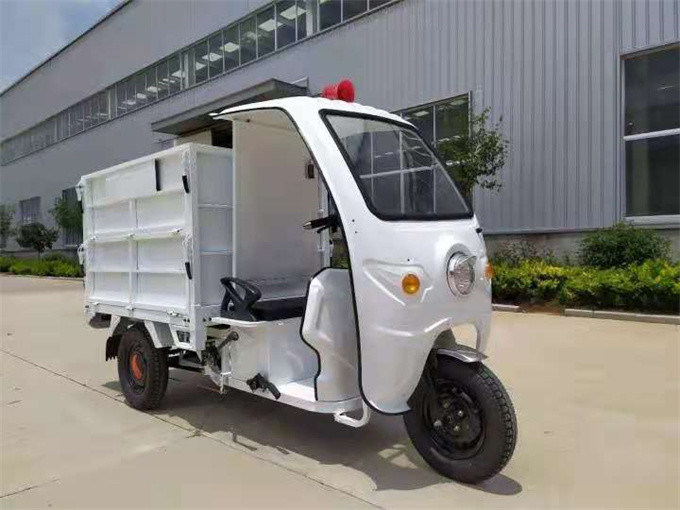

Electric Sanitation Vehicle Special Vehicle For Cleaning
| name | MINI | Front brake system | Drum brake | |
| Outline size | 2960*1080*1450mm | Rear brake system | Drum brake | |
| Carriage size | 1500*1000*1000mm | Hub | Steel wheel | |
| wheelbase | 1980mm | Front tire size | 4.50-12Steel Wire | |
| Track width | 990mm | Rear tire size | 4.50-12Steel Wire | |
| Number of cab passengers (persons) | 1 person | Headlight | LED lamp bead convex mirror headlamp / near and far light | |
| Rated cargo weight (kg) | 200kg | Meter | LCD screen | |
| Minimum ground clearance | ≥18CM(no-load) | Rearview mirror | Manual folding | |
| Controller | 48-60V 24G | Seat / backrest | High-grade leather, sponge seats | |
| Rear axle assembly | Integrated rear axle | Steering system | handlebar | |
| Front damping system | Ф43outer spring Hydraulic shock absorption of aluminum cylinder | Pedal skin | ● | |
| Rear damping system | Shock absorption of leaf spring | Horn | Front dual horn | |
| Anti slide slope | ● | Climbing angle | 15° | |
