| Place of Origin: | China |
|---|---|
| Brand Name: | Haibao |
| Model Number: | L01 |
| Minimum Order Quantity: | 2 |
| Price: | Further discussion on specific parameters |
| Packaging Details: | N/M |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 units/month |
| Vehicle Size: | 2960*1180*1825mm | Motor Controller: | 1000W18 Tube Dedicated Controller |
|---|---|---|---|
| Vehicle Curb Weight (kg), Refrigerator Included: | 330(Including Freezer) | Fulled Charged Fully Loaded: | 970kg |
| Maximum Speed: | ≦32Km/h | Battery: | Lead-Acid Battery |
| Color: | White | Charging Time: | 6-8 Hours |
| High Light: | 32Km/H Cold Chain Transport Vehicle,1000W Ice Cream Cold Chain Transport Vehicle,Frozen Food Delivery Truck 32Km/H |
||

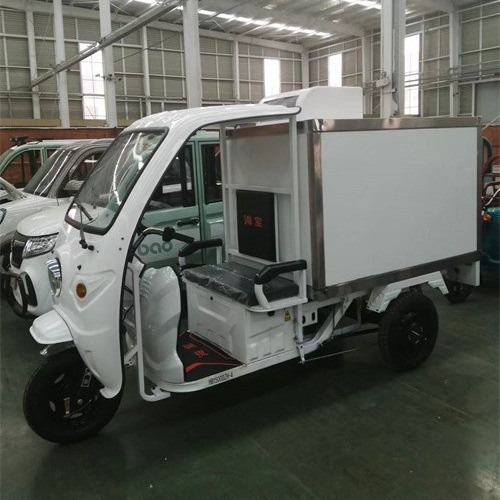

Cold Chain Transport Vehicle With Compressor Refrigerator Selling Ice Cream Tricycle Car
| Name | L01 | leaf spring | 50mm wide, 6mm thick, 6pcs leaf springs | |
| Vehicle size | 2960*1180*1825mm (The top of the freezer) |
rear axle ratio,With shifting rear axle | Regular 1:9.3; Shift 1:23 | |
| Motor Controller | 1000W18 tube dedicated controller | Rim type | Front and rear steel wheels | |
| wheelbase | 2030mm | Tire specifications | Front 3.75-12 back 4.00-12 |
|
| front shock | φ37 hydraulic shock absorber with external spring | rear axle | Integrated rear axle | |
| Vehicle curb weight (kg), refrigerator included | 330(Including freezer) | Type of rainproof shed | One piece stamping canopy | |
| Pallet size | 1500*1000(According to freezer size) | main cable | Adopt national standard cable, with two sets of lithium battery connectors |
|
| maximum steering angle | 35° | fulled charged fully loaded | 970kg | |
| Maximum speed | ≦32Km/h | fulled charged fully loaded explaination | Including body weight, battery, driver, total cargo weight |
|
| reversing speed | ≤15km/h | Brake type | Rear hub brake | |
| Climbing angle,the slope is 10 meters long | 15° | Brake specification (mm) |
130 | |
| Control mode | Handle / foot brake | Wiper | ●Automatic return | |
