| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HAIBAO |
| Model Number: | LINGLONG |
| Minimum Order Quantity: | 4 |
| Price: | Further discussion on specific parameters |
| Packaging Details: | 4 units/40HQ |
| Delivery Time: | 15-30 WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000 UNITS 30 WORK DAYS |
| Vehicle Size: | 2903*1450*1610mm | Motor Power: | 3000WD |
|---|---|---|---|
| Max. Speed: | 45km/h | Max. Range: | 120km |
| Curb Weight: | 430kg |
Basic Specification |

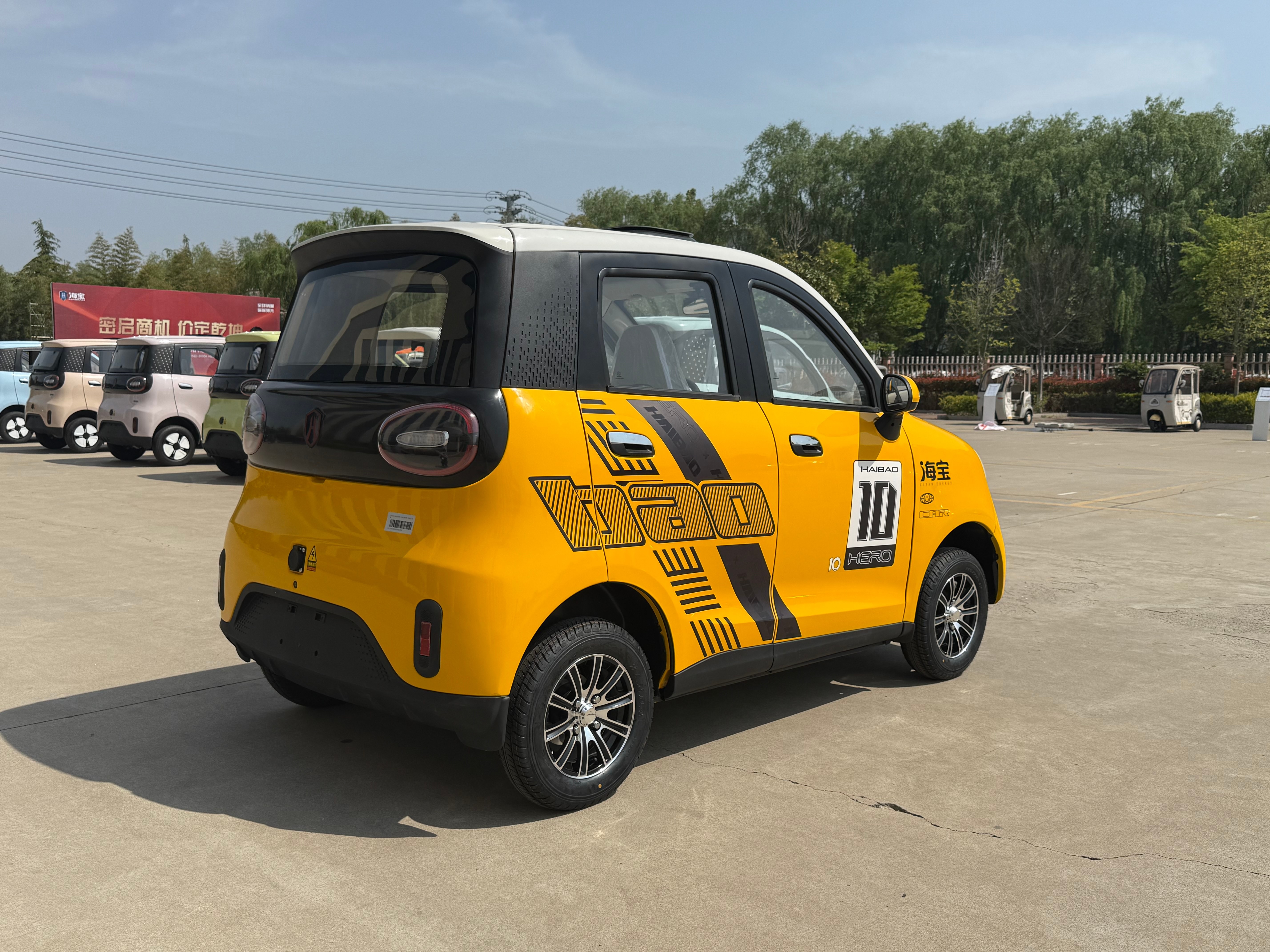

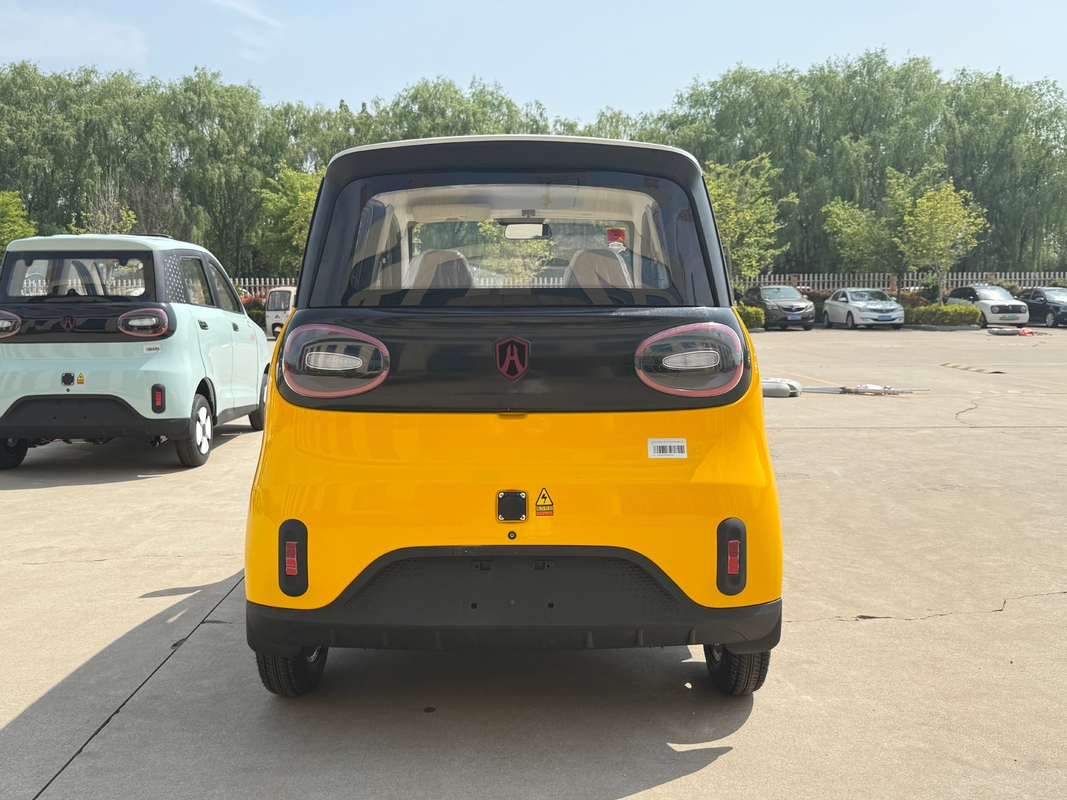

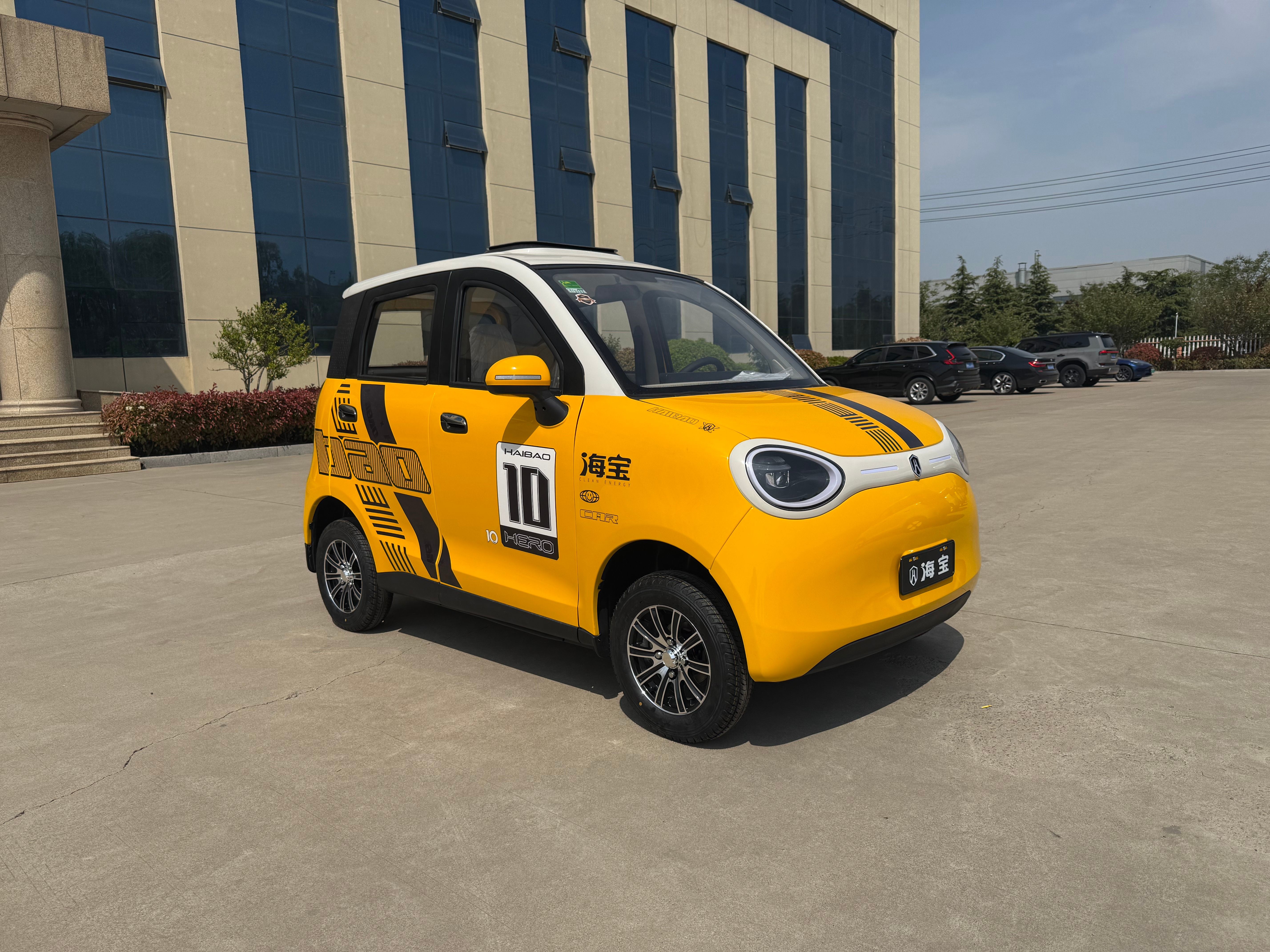

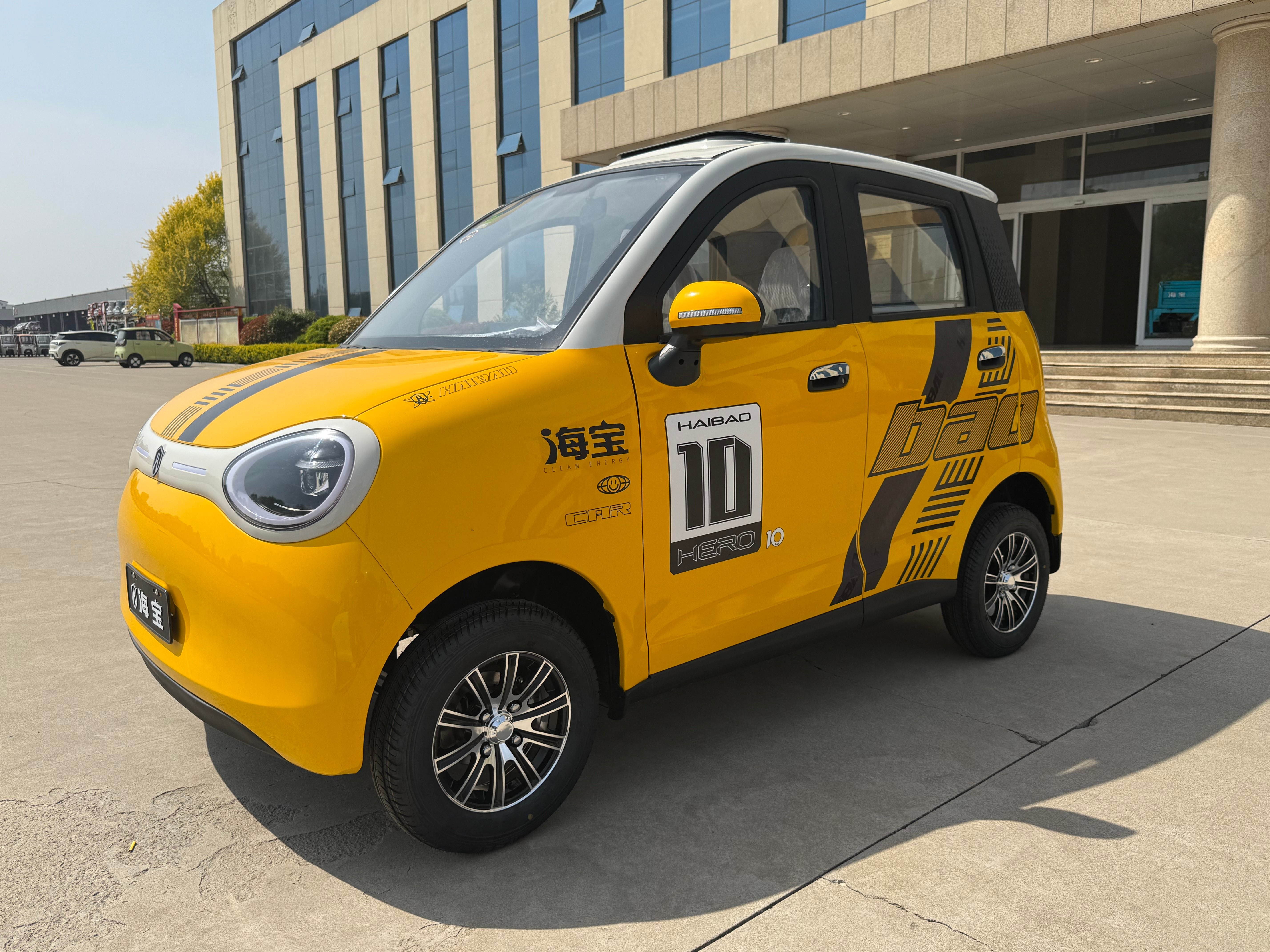

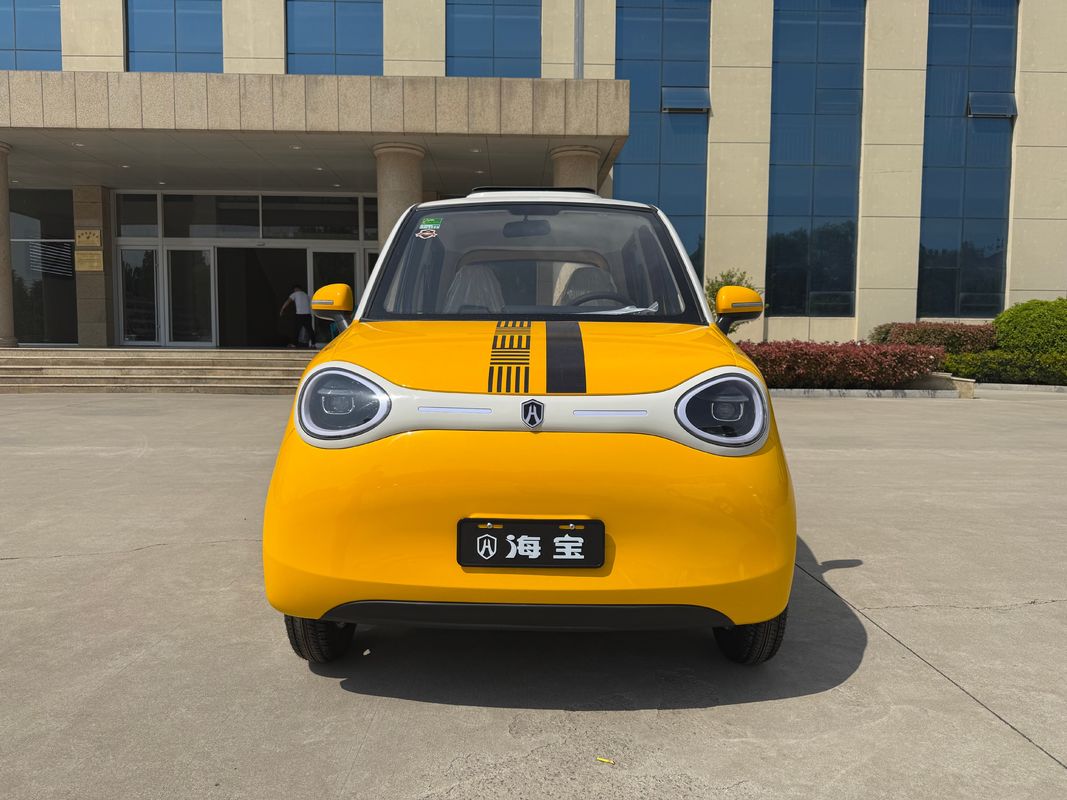

Product name | Ling Long | ||
| Vehicle size | 2903*1450*1610mm | |||
| Motor power | 3000WD | |||
| Number of doors | 5 | |||
| Rated crew | 4 | |||
| Curb weight | 430kg | |||
| Max. speed | 45km/h | |||
| Battery | Lithium battery(72V105AH) | |||
| Max. range | 120km | |||
| Wheel distance | 1275mm | |||
| Wheelbase | 1905mm | |||
| Charging time | 6-8h | |||
Suspension system |
Front axle assembly | MacPherson independent suspension | ||
| Rear axle assembly | Integrated rear axle drag arm type | |||
Damping system |
Front shock absorption system | Composite spring shock-absorbing type | ||
| Rear shock absorption system | Split spring shock-absorbing type | |||
Other configurations |
Steering system | Steering wheel | ||
| Controller | 72V 24 tubes Controller | |||
| Door glass | Front electric, rear hand crank | |||
| Front & Rear brake system | Front/Rear disc brake | |||
| Parking method | Independent handbrake | |||
| Wheel hub | Aluminum wheel | |||
| Tire | Front wheel 145/70-12; Rear wheel 145/70-12 | |||
| Headlight | LED | |||
| Meter | 7 Inch meter | |||
| Rearview mirror | Manual folding | |||
| Seat | High-end leather foam cotton seats | |||
| Interior | Injection molding interior | |||
| Radio & Reverse image | ● | |||
| Wiper | ● | |||
| License plate lamp | ● | |||
| Central control lock | ●Unlock with tailgate | |||
| Child lock | ● | |||
| Interior mirror | ● | |||
| Sun visor | ● | |||
| Skylight (with fan and light) | ● | |||
| Anti slip function | ● | |||
| USB Multimedia interface | ● | |||
| With the continuous upgrading of the product, this configuration table is subject to change without prior notice; This configuration diagram and text are for reference only, please refer to the actual vehicle. | ||||
