| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HAIBAO |

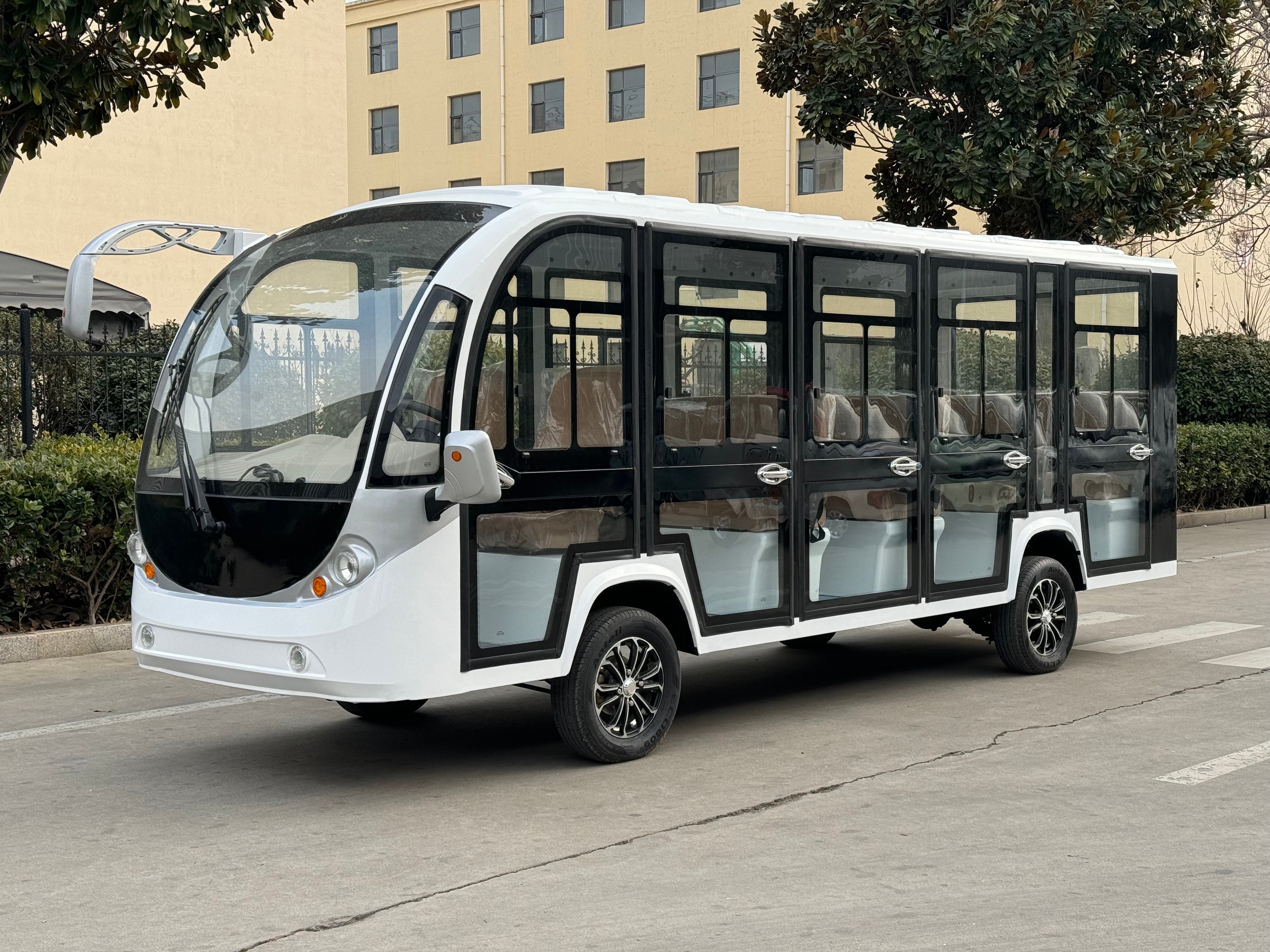

| Model Number: | HB GCC (14 seats) |
| Minimum Order Quantity: | 4 |
| Price: | PRICE NEGOTIABLE |
| Packaging Details: | 4 units/40HQ |
| Delivery Time: | Thirty days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 UNITS/MONTH |
| Controller: | Imbor 3257 | Battery: | 72v200AH Lead-acid Battery |
|---|---|---|---|
| Charger: | Special Built-in Intelligent Charger | Charging Time: | 8-10 Hours |
| Electrical system | Motor | 7.5kw AC motor |
| Controller | Imbor 3257 | |
| Battery | 72v200AH lead-acid battery | |

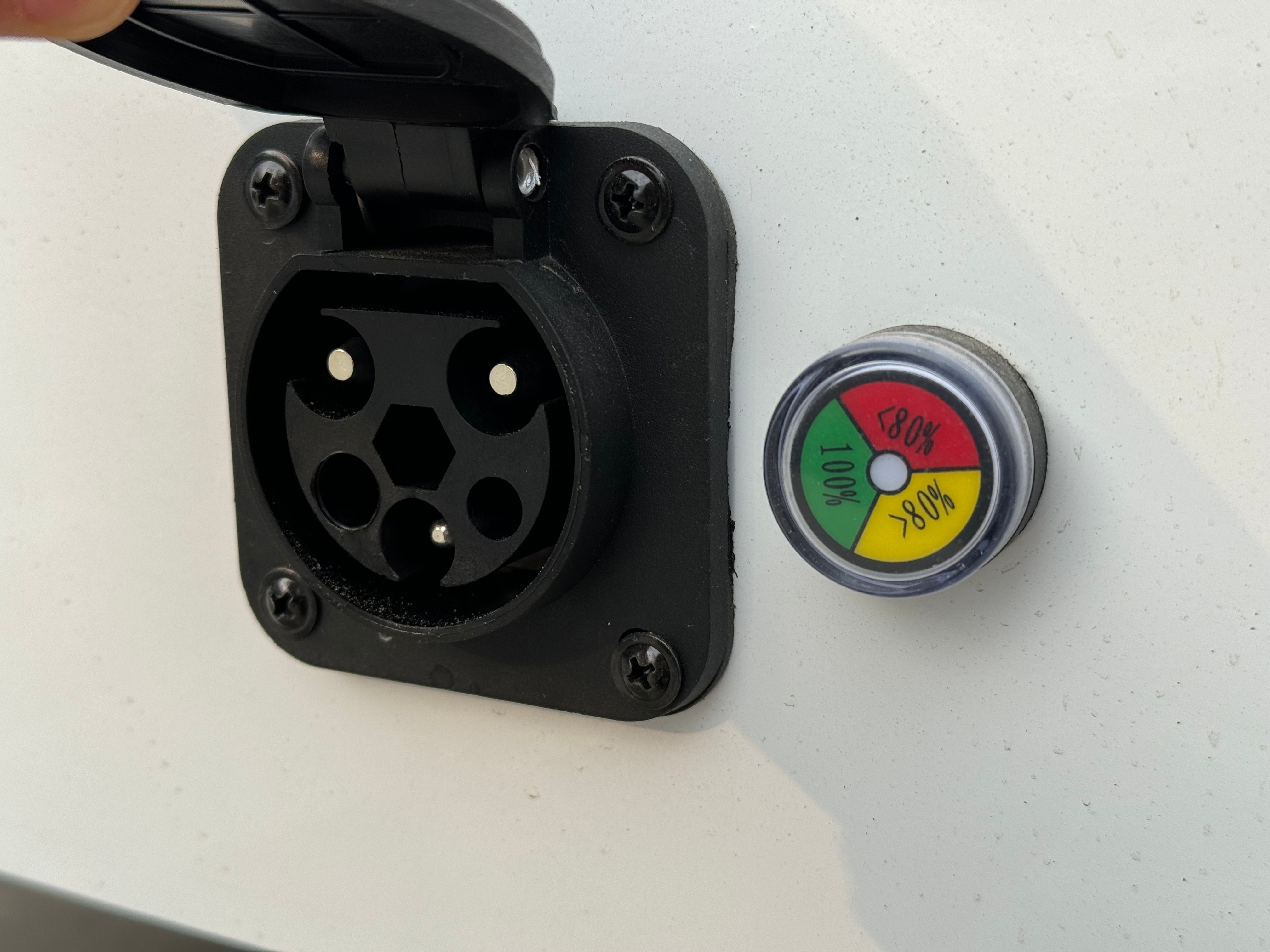

| Charger | Special built-in intelligent charger | |
| Charging time | 8-10 hours | |
| technology parameter |
Appearance material | Metal iron shell |
| Appearance size | 5280×1580×2100mm | |
| Curb weight | 980KG | |
| Rated occupant | 14 people | |
| Wheelbase | 1400mm | |
| Front/rear track | Front wheel: 1420mm/rear wheel: 1450 mm. | |
| Minimum turning radius | 4.3M | |
| Max. speed | Max. speed < 40 km/h | |
| Mileage | 100-120KM (Road conditions and weather have an impact) | |
| Chassis | Steering system | Left and right double push rack and pinion steering+polyurethane foam steering wheel+direction assist. |
| Power wheel drive | rear-wheel drive | |
| Braking system | Double-circuit hydraulic brake of front disc and rear drum+hand brake | |
| Front axle and suspension | Front axle McPherson independent suspension spiral spring+cylinder hydraulic shock absorption | |
| Rear axle and suspension | Integral rear axle leaf spring, Steel plate spring+cylindrical hydraulic shock absorber | |
| Tyre/hub | 165/70R13 | |

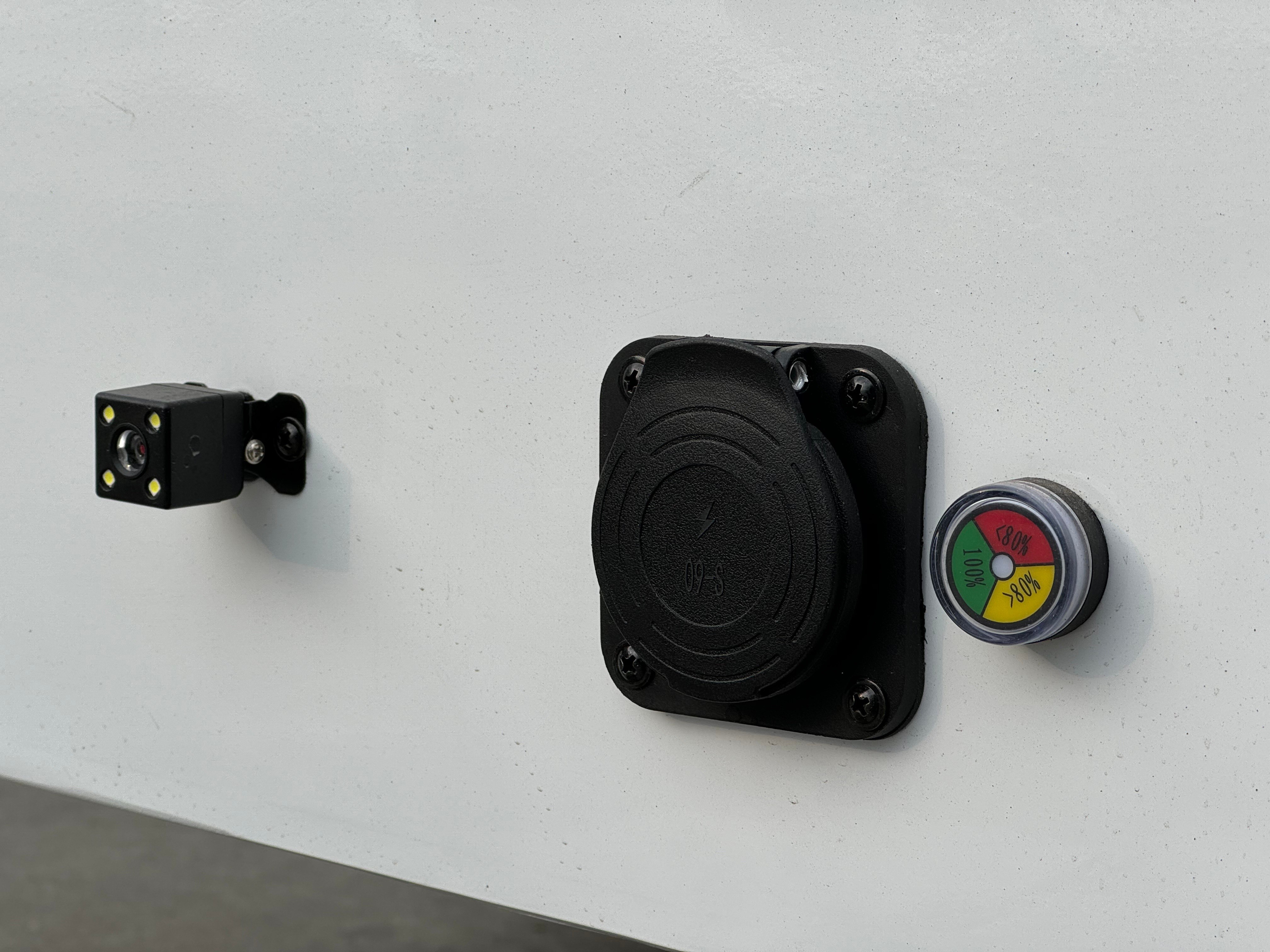

| Body configuration | Front gear/central control | Molding instrument table, voltmeter, ammeter, electricity meter, speedometer, instrument indicator light, electric lock switch, stereo, USB interface, reversing image. |
| Seat chair | Leather fabric+high resilience and high quality PU | |
| Rear-view mirror | One left and one right manual exterior rearview mirror. | |
| Ceiling | Metal iron shell/FRP material | |
| Car body | Steel frame, fixed battery frame, door | |

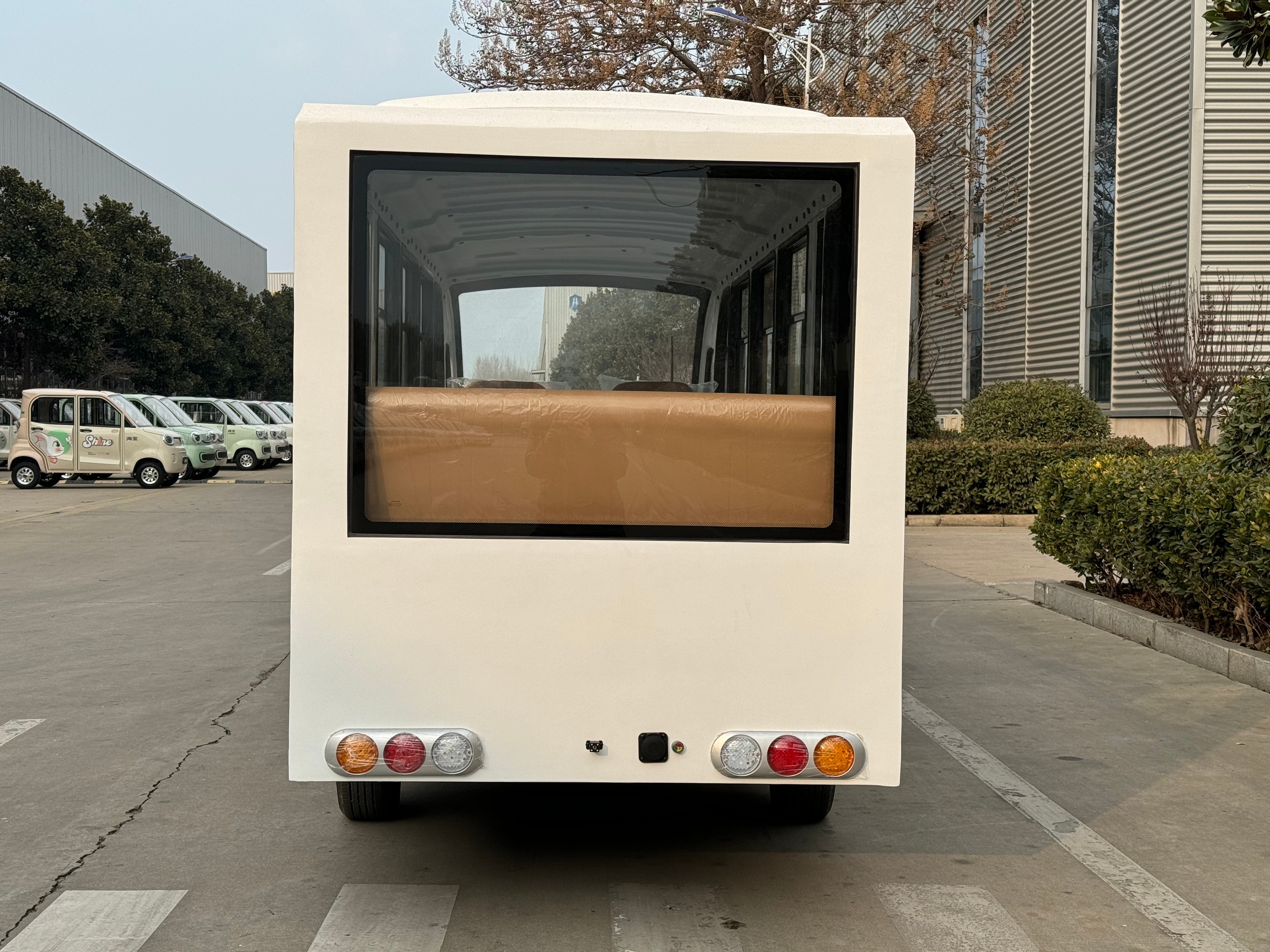

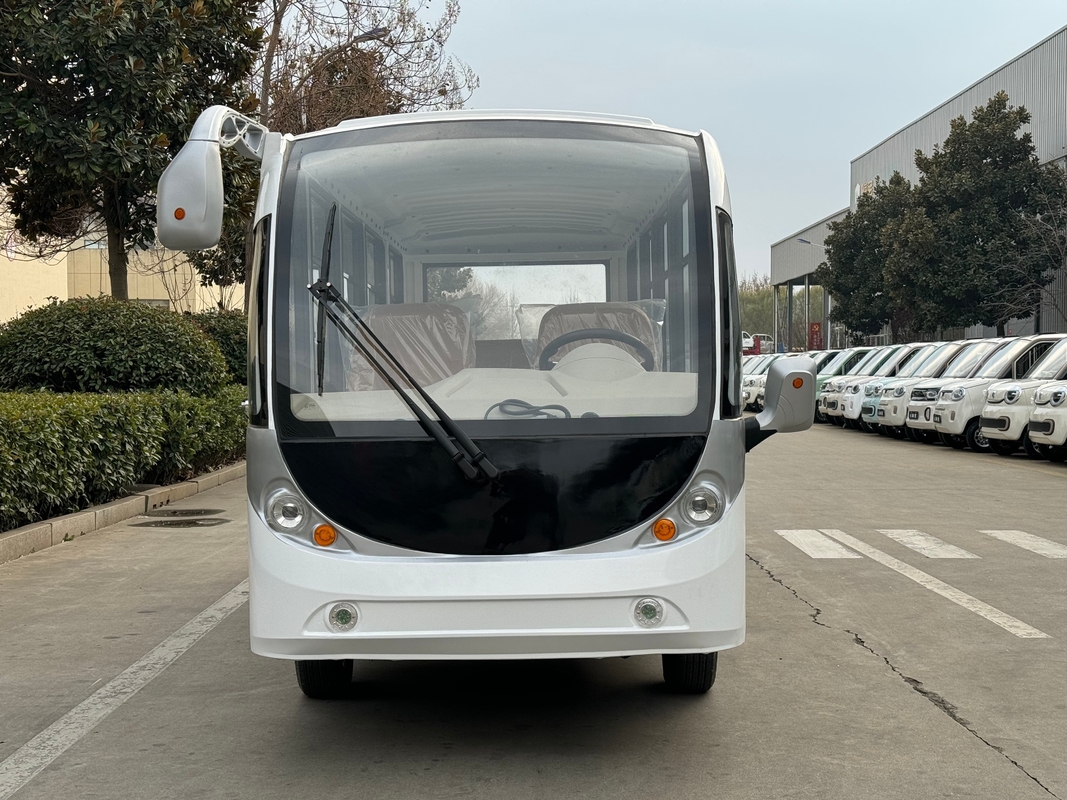

| Light and signal number | Far and near integrated highlight headlight, turn signal, reversing light, rear taillight, horn brake light | |
| Floor | Rubber non-slip floor | |
| Paint | Automobile-grade high-quality paint, computer paint mixing, automobile paint baking. | |
| Remarks | Add a detachable car door and a heating and cooling air conditioner. | |
| Special maintenance tools, jacks, tire wrenches, certificates, instructions and vehicle inspection reports are included with the vehicle. | ||
| PS:The exchange rate is 7, and the price is valid for 15 days. | ||
